Elipse E3 reduces costs with raw materials at Castrolanda’s animal feed factory

Solution developed by Elipse Software monitors processes at the agricultural cooperative’s factory located in Castro (PR) and dramatically reduces waste throughout its production chain

Needs



Established in 1951, Castrolanda – Agricultural Cooperative Ltd. is an agribusiness cooperative composed of 900 farm members and 3000 collaborators. Headquartered in Castro (PR), its other corporate offices are located in the states of Paraná, São Paulo, and Rio de Janeiro. To monitor processes and to remotely control the animal feed factory machinery in in its headquarters, Castrolanda has decided to adopt the software Elipse E3, in an application developed by Nexxus Evolution Systems in 2014.

Developed by Elipse Software, the Elipse E3 solution was chosen due to its client-server distributed architecture, great cost/benefit ratio, and development structure, which are ideal features when implementing dosage systems.

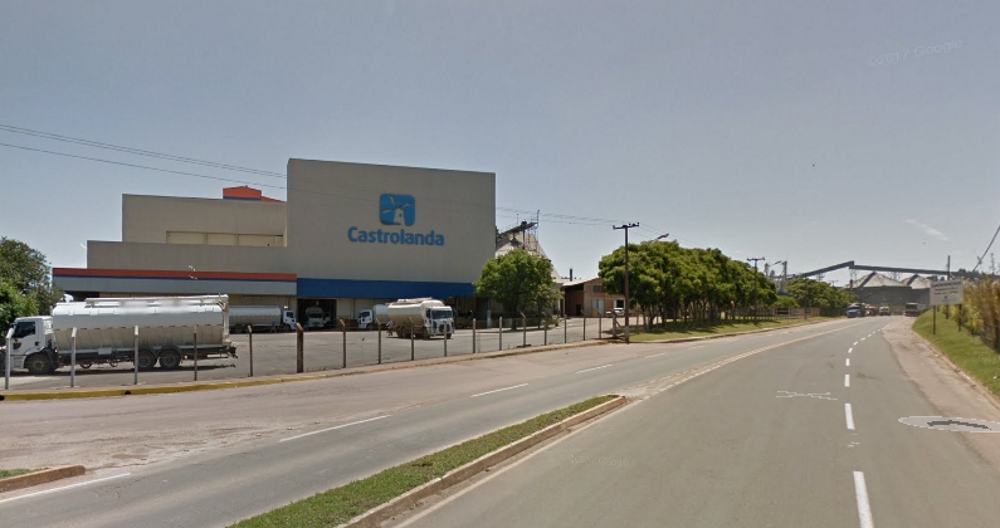

Figura 1. Fábrica de rações da Castrolanda

Figure 1. Castrolanda’s animal feed factory in Castro (PR)



Solution

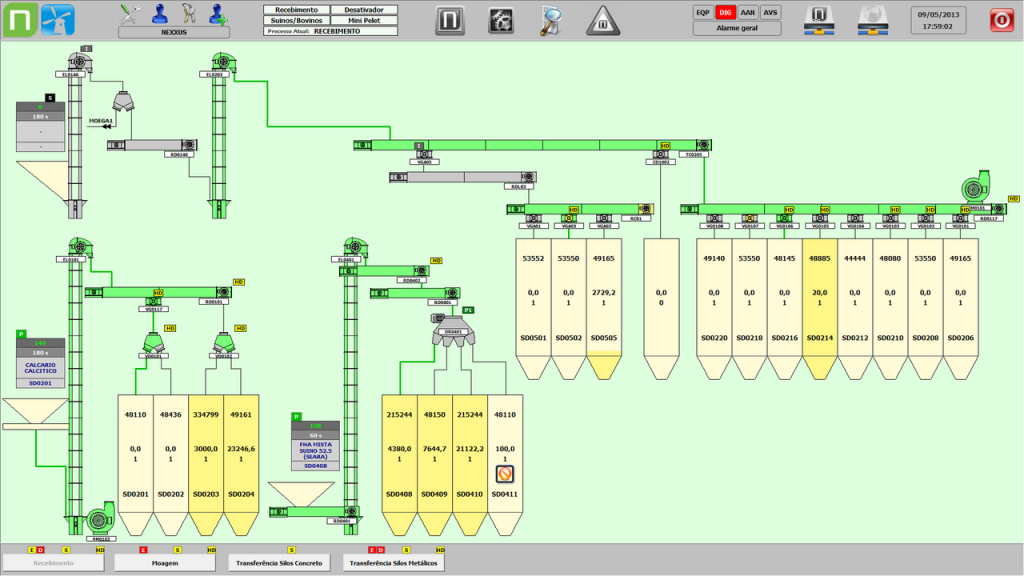

Elipse E3 allows monitoring all processes taking place at any point in the production chain. The first stage is receiving the raw materials that are used for producing the animal feed. At that point, operators can monitor, via number codes, which products were delivered to the silos by trucks, as well as the total weight stored in them (the darker shade of yellow in the figure below stands for filling degree). Usage priority is also illustrated by the software at this stage: number 1 stands for higher priority.



Figure 2. Monitoring the products to be employed in the production of animal feed

Figure 2. Monitoring the products to be employed in the production of animal feed

Once received, these products are available for dosage according to pre-configured formulas and then go through a second stage, where they are sent to mills and mixers. At this stage, Elipse E3 monitors the products passing through the pre-mixer, the mill lung, the mill, the mixer’s superior lung, the mixer, and the mixer’s inferior lung. After passing through the mixer, the final product (feed) goes through a third stage in the pellet mills before arriving at the expedition silos.

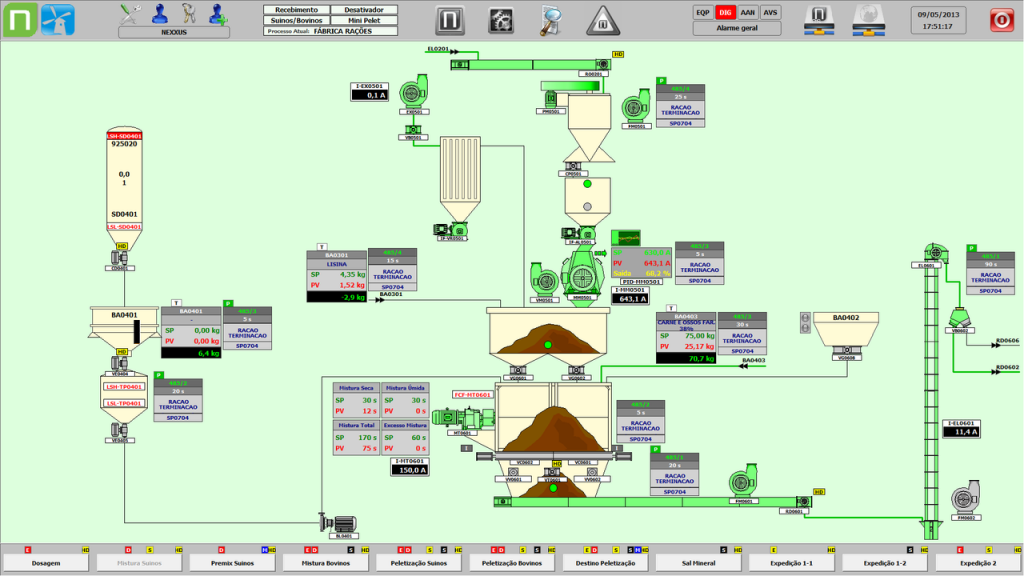

On the left side of the screen, the software displays the oil and fat dosages before they are sent to the mixer, where they are mixed to the solids. At this stage, Elipse E3 presents the mixtures in real and stipulated time. The electric current of the mills responsible for grinding the solids into grains is also displayed.



Figura 3. Tela de monitoramento das misturas dos produtos sólidos e líquidos

Figure 3. Monitoring solid and liquid mixtures

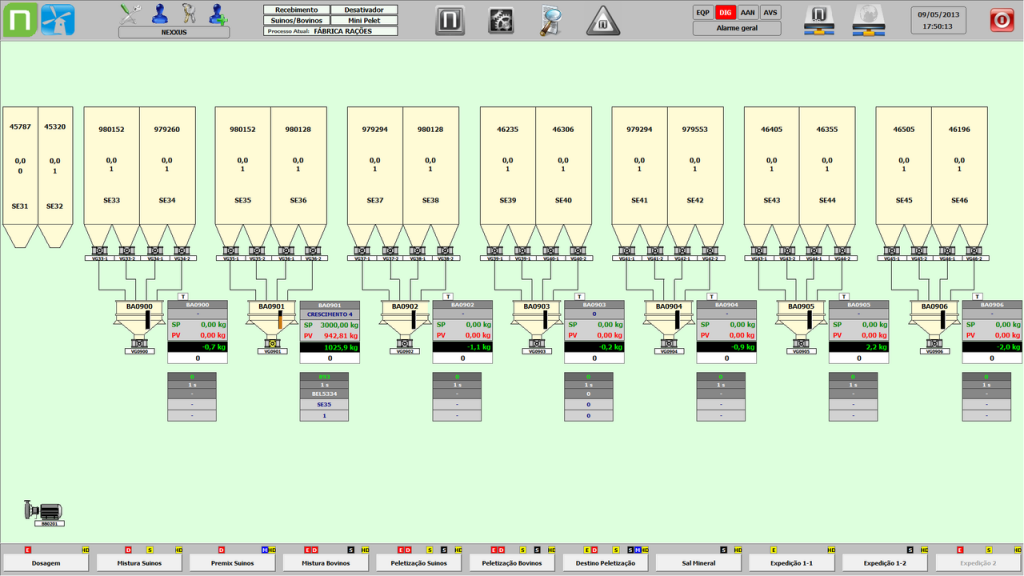

Once these ingredients have been thoroughly mixed, operators are able to monitor the dispatch of the finished material (feed). At this stage, the software indicates which products and silos are being used, the silo’s usage priorities, the boxes with feed being sent via trucks, and how heavy each box is (in kilograms), both altogether and in real time. Operators are also able to visualize stock keeping units, order numbers, and the license plate of the trucks transporting the animal feed to the market.



Figura 4. Supervisão da expedição da ração

Figure 4. Monitoring the product’s dispatch

Finally, the software allows controlling lifts, redlers, forks, and the exhaust system at the factory, as well as recording events via reports and charts that act as tools for audit analyses. With it, operators can record stops, check for crossed contamination, monitor users and production quality, track raw materials, and schedule production.



Benefits



Elipse E3 has represented a new paradigm in the factory’s supervisory control and data acquisition system. In the past, it was executed solely by Elipse SCADA; nowadays, Elipse’s products have been directed solely for process supervisory management, while the factory’s control has been designated to ES-FMS, an automation system also developed by Nexxus. This has greatly improved the system’s interface, which is now clearer, more intuitive than before. Listed below are other benefits provided by the Elipse solution in this application:

  • Less raw material waste;
  • Products aren’t mixed in the silos;
  • Process trackability;
  • Quick resolution for any stops in the process;
  • Fewer extra-hours are demanded, due to a tighter control in production leading to shorter time required for each batch;
  • Less reprocessing: dosages are now more accurate;
  • Less product contamination;
  • Increased production;
  • Integration to the corporate system.

Datasheet

Client: Castrolanda - Cooperativa Agroindustrial LTDA

Systems integrator: Nexxus Evolution Systems

Elipse product: Elipse E3

Platform: Windows Server 2008

Number of copies: 8

Number of I/O points: 2800

I/O drivers: OPC UA
