Troubleshooting in less than a second at SAEMAS with Elipse E3

Solution by Elipse Software is responsible for monitoring in real time 20 water storage units and 60 water pumps controlled by SAEMAS, a municipal water, wastewater, and environment agency from Brazil

Needs



SAEMAS is the Water, Wastewater and Environmental Independent Agency of Sertãozinho, a municipality in the countryside of the State of São Paulo, in Brazil. The agency is responsible for exploring and operating the water and wastewater utilities in the location. In order to automate the water supply system in Sertãozinho, SAEMAS has adopted Elipse E3, the automation solution provided by Elipse Software.

For SAEMAS, the selling point for choosing this solution was how easily it can be adjusted, improved and expanded. The application was developed by Alfacomp Automação Industrial Ltd., and implemented in March 2018.

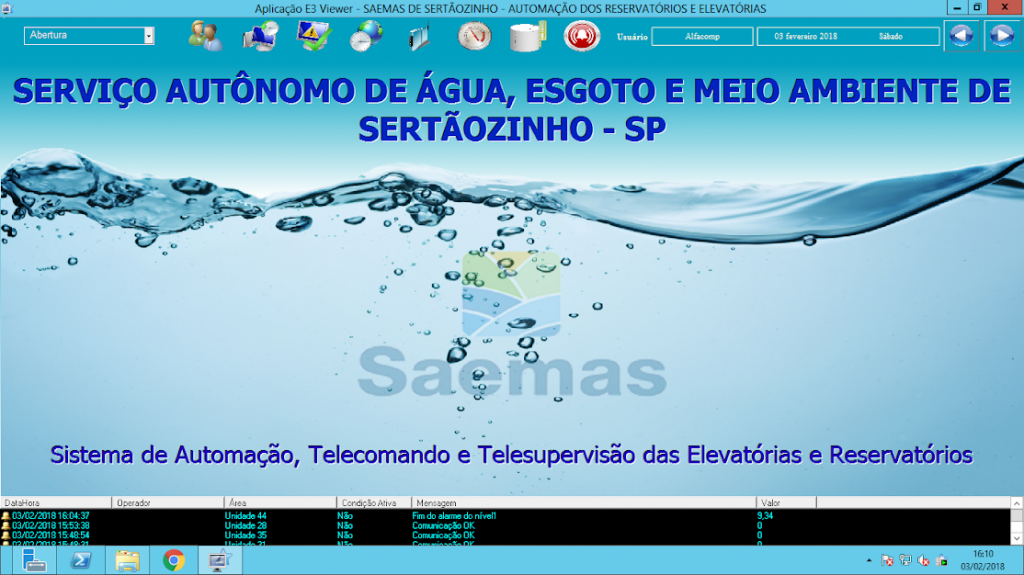

Figure 1. Elipse E3’s initial screen at the SAEMAS system

Figure 1. Elipse E3’s initial screen at the SAEMAS system




Solution



Elipse E3 allows monitoring and issuing commands to all 20 water supply units in Sertãozinho. Each unit comprises one reservoir and three water pumps; these are displayed on the unit’s screen, where the pumps’ water flow, pressure, voltage, and current can be tracked, as well as the reservoir’s water level.

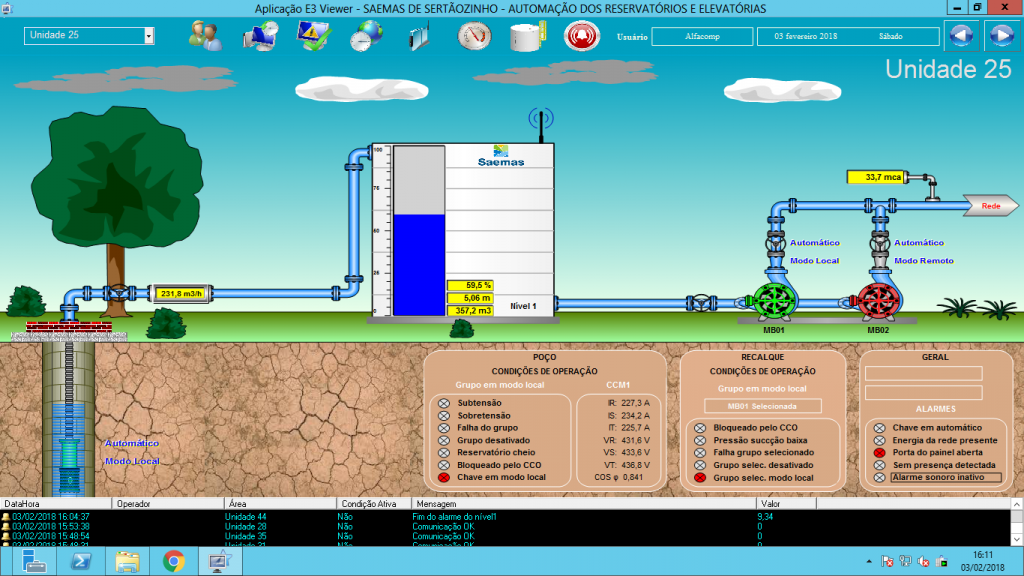

Figure 2. Control screen displaying one of Sertãozinho’s water supply unit

Figure 2. Control screen displaying one of Sertãozinho’s water supply unit

The same screen allows monitoring the water pumps’ operational status (faulty devices, service under maintenance, or fully operational unit), and following or resetting their functioning hours.

Their default settings for voltage and current can also be monitored with the software; the same can be done to the pumps’ water pressure level in each unit.

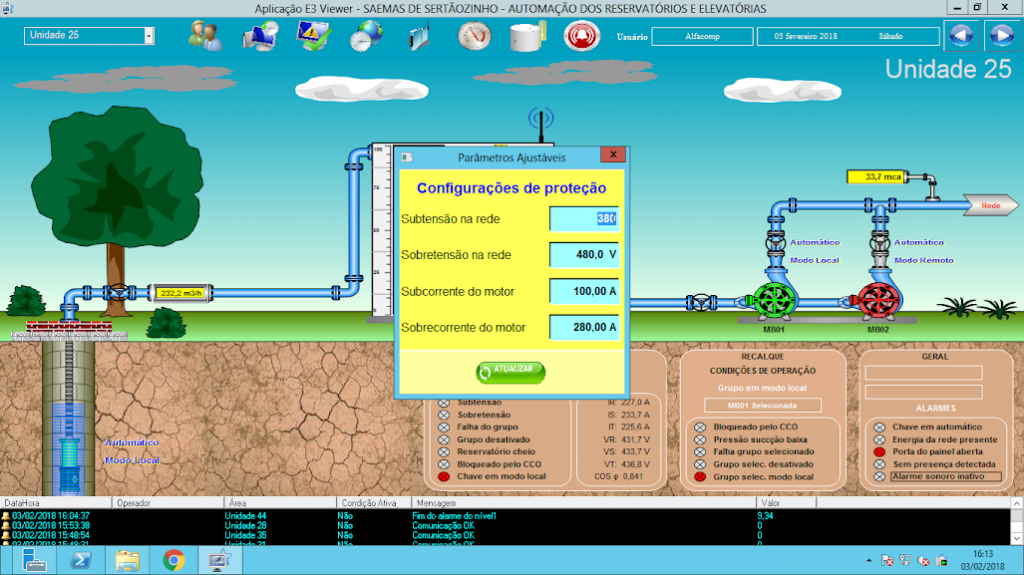

Figure 3. Voltage and current for the water pumps in the unit’s reservoir

Figure 3. Voltage and current for the water pumps in the unit’s reservoir

The same control applies to the water levels in the reservoirs: the system is set up to turn the pumps on or off as needed, thus assuring constant supply and reducing waste. This context of rational water and energy usage allows Elipse E3 to select which stations will be on during peak periods according to system demand.

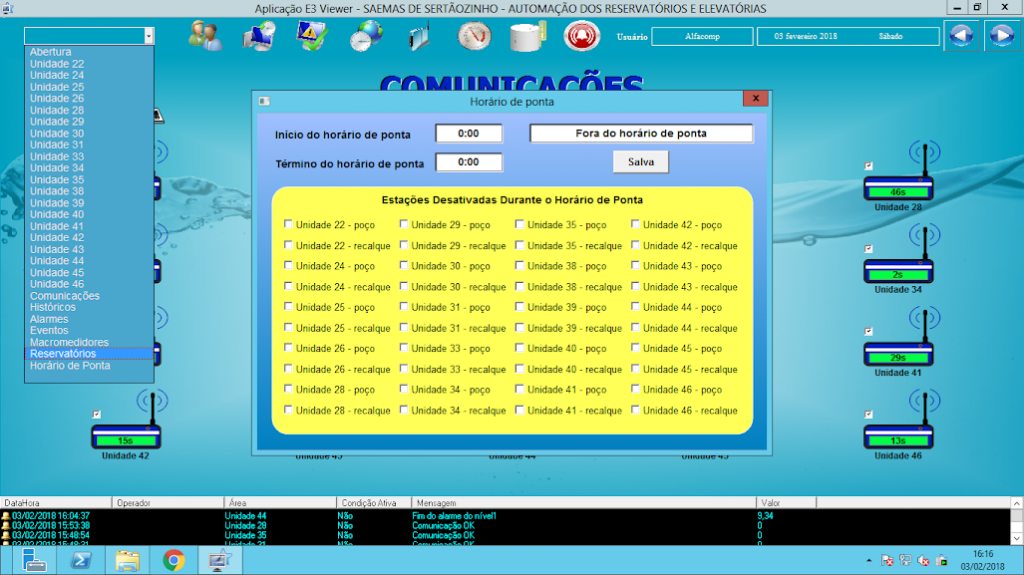

Figure 4. Selecting the stations to be turned on during peak periods

Figure 4. Selecting the stations to be turned on during peak periods

Water levels and flow can be measured either individually at each reservoir or altogether. The amount of flow observed between water wells and reservoirs is also monitored, similarly to what happens to the automation system scan in each unit.

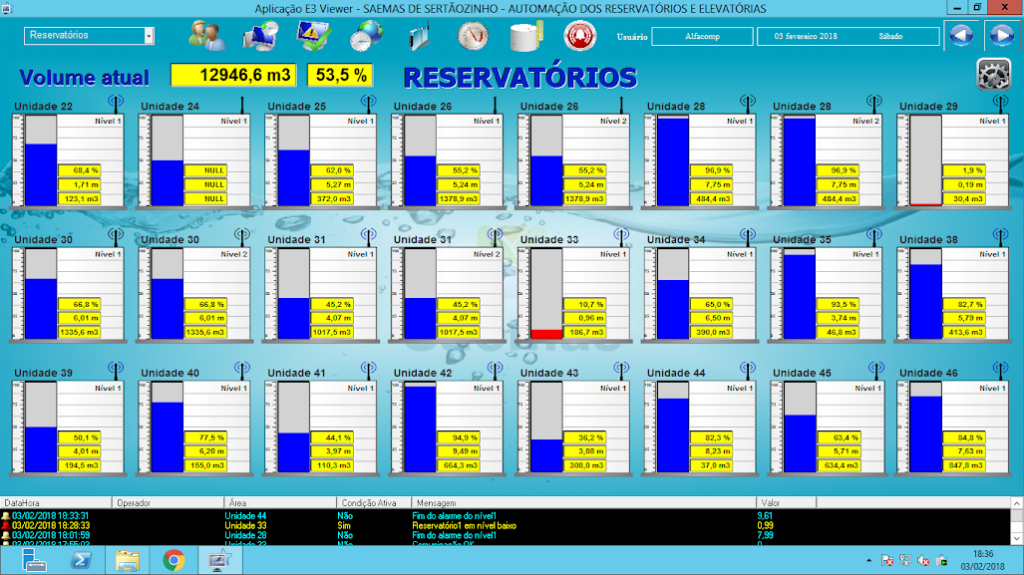

Figure 5. Water level in the reservoirs

Figure 5. Water level in the reservoirs

At the end of the process, this solution allows issuing reports on the events, history, and alarms from any given period, according to pre-established settings. If an alarm does not meet the expected values (for example, the undervoltage value is below the recommended), the software then fires a visual, audible sign to operators.

In addition to reports, the software also allows issuing charts that analyze the units’ performance. Both formats (reports and charts) can be exported to PDF or Excel, and are extremely useful for inspection audit purposes.

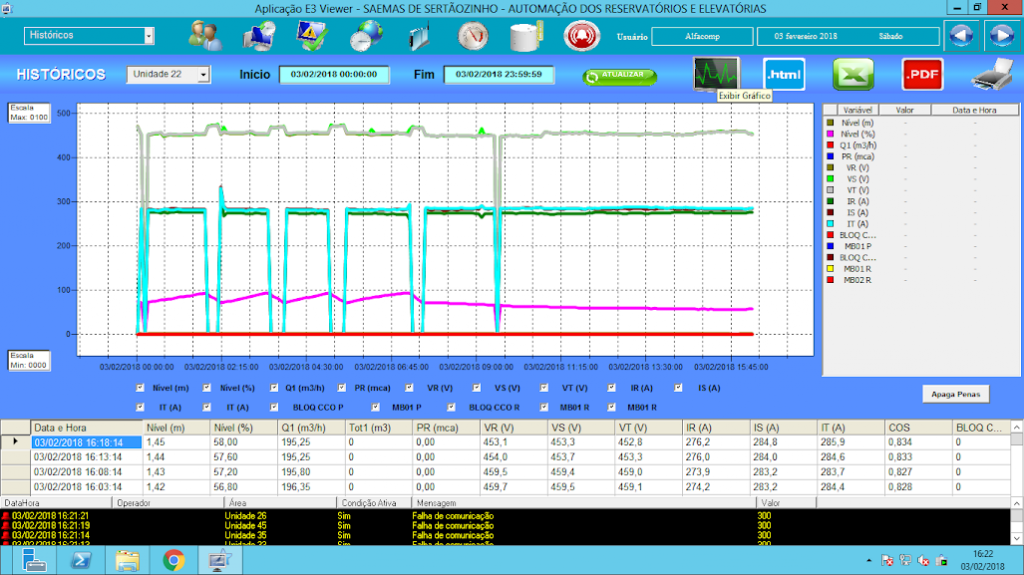

Figure 6. Chart displaying the electric variables analysis in a water pump

Figure 6. Chart displaying the electric variables analysis in a water pump




Benefits



With Elipse E3, SAEMAS can now monitor, in real time, all 20 units in the water storage system from Sertãozinho, a municipality in Brazil. Operators are instantly briefed about any occurrences and can act on it very quickly; before the adoption of Elipse E3, system monitoring happened locally and not remotely, therefore what now can be done within a split second usually took hours to be resolved.

“The data and reports generated by E3 allow us to diagnose and fix any issues much more easily; we no longer need to displace maintenance teams to the field only for monitoring purposes,” says Leandro Espinoza, chemist at SAEMAS.

According to Espinoza, the solution has also allowed the company to determine the need for elevating the power factor of the water pumps; this benefit responds directly to this automation’s main purpose, which is reducing water and energy waste in the system.

“Thanks to Elipse E3, we were able to ascertain a new power factor for the water pumps; acting on it will save us, in the future, around U$ 5,000 per month,” he says.

The main benefits provided by Elipse’s technology to SAEMAS are:

  • Water pressure, flow, and level are monitored in real time in the reservoirs;
  • Standard voltage, current, pressure, and level values in the reservoirs are set up and monitored by the system;
  • The alarm system is responsible for warning operators about any issues in the units;
  • Water pumps functioning hours can be followed and reset at any time;
  • Water pumps operational statuses are monitored regularly;
  • Events and alarms are recorded via reports, which can be exported to Excel or PDF;
  • Unit performances are analyzed via charts, which can also be exported to Excel or PDF.

Datasheet

Client: SAEMAS

Systems Integrator: Alfacomp Automação Industrial Ltda.

Elipse Product: Elipse E3

Platform: Windows Server 2012

Number of copies: 4 (1 E3 Server + 3 E3 Viewer Control)

I/O points: 1500

I/O driver: MODBUS RTU
